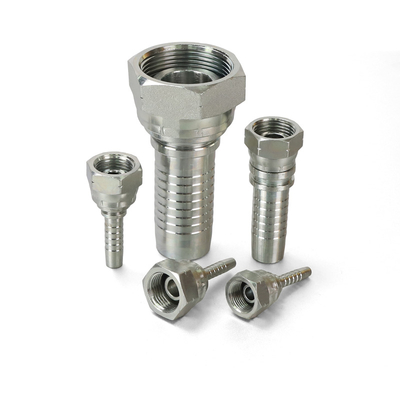

Home /Products/Carbon Steel Pipe Fittings/Carbon Steel feiben Top Quality High quality wholesale hydraulic hose fitting 22611 with Good Price customized zinc galvanized High Pressure

Carbon Steel feiben Top Quality High quality wholesale hydraulic hose fitting 22611 with Good Price customized zinc galvanized High Pressure

2 acres
MOQ
Carbon Steel feiben Top Quality High quality wholesale hydraulic hose fitting 22611 with Good Price customized zinc galvanized High Pressure
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Warranty: 1.5 Years
Showroom Location: None
Type: Fittings
Pressure: -
Structure: -
Weight: 0.13
Power: -
Dimension(L*W*H): 10*10*14
Product Name: Hydraulic Hose Fittings
Material: Carbon Steel
Color: Customer's Request
MOQ: 100
Surface Treatment: Zinc Plating
DELIVERY TIME: Mass Production : 15~30 Days
Package: Carton Box+wooden Case
Advantage: High-quality
Basic Infomation
Payment & Shipping Terms
Packaging Details: plastic bags inner and carton !
Supply Ability: 50000 Acre/Acres per Day
Product Description
Products Description
代号
PART NO
螺 纹E
THREAD E
软 管 HOSE BORE
尺 寸DIMENSIONS
公称内径 DN
标号 DASH
A
C
S2
22611-02-03
G1/8"X28
5
03
15
5.5
14
22611-02-04
G1/8"X28
6
04
15
5.5
14
22611-04-03
G1/4"X19
5
03
17
5.5
19
22611-04-04
G1/4"X19
6
04
18
5.5
19
22611-04-05
G1/4"X19
8
05
18
5.5
19
22611-04-06
G1/4"X19
10
06
18
5.5
19
22611-06-04
G3/8"X19
6
04
19
6.3
22
22611-06-05
G3/8"X19
8
05
19
6.3
22
22611-06-06
G3/8"X19
10
06
19.5
6.3
22
22611-06-08
G3/8"X19
12
08
19.5
6.3
22
22611-08-06T
G1/2"X14
10
06
21
7.5
27
22611-08-08
G1/2"X14
12
08
21.5
7.5
27
22611-10-08
G5/8'X14
12
08
22
9.5
30
22611-10-10
G5/8"X14
16
10
23.5
9.5
30
22611-12-08T
G3/4"X14
12
08
22
10.9
32
22611-12-10
G3/4"X14
16
10
24
10.9
32
22611-12-12
G3/4"X14
20
12
24
10.9
32
22611-16-12T
G1"X11
20
12
24
11.7
41
22611-16-14
G1"X11
22
14
26
11.7
41
22611-16-16
G1"X11
25
16
27
11.7
41
22611-20-16T
G1.1/4"X11
25
16
27.5
11
50
22611-20-20W
G1.1/4"X11
32
20
30.5
11
50
22611-24-20T
G1.1/2"X11
32
20
32
13
55
22611-24-24W
G1.1/2"X11
40
24
32
13
55
22611-32-24T
G2"X11
40
24
30
16
70
22611-32-32W
G2"X11
50
32
31.9
16
70

注：1.表中代号用于编织软管 2.如需用于缠绕软管代号改为22612-xx-xx
Note: 1.For use with braided hoses 2 If use with spiral hoses, hose fitting series number is 22612-xx-xx
QUICK INFO
1. Material
Carbon steel , Stainless steel etc.
2. Color
Silver or Yellow
3. Thread Size
British Fitting:G 1/8" x28-G2"x11
American Fitting: 7/16" x20-2.1/2"x 12
Metric Fitting :M12*1.5. M14*1.5,M16*1.5, M18*1.5. M20*1.5, M22*1.5 , M24*1.5, M26*1.5, M27*1.5. M30*2 , M36*2 , M42*2 , M45*2 ,M52*2
Flange: 1/2"-- 2.1/2"
Ferrule:3/16"- 2"
4. Hose Bore
DN 5-DN51 or 3/16"- 2"
5. OEM Accepted
Yes
6. Certificate Available
IS09001:2008
7. Type
tee , union , connector , coupling , cross ,etc
8. Technology
CNC Machining
9. Surface Treatment
Trivalent zinc plus closed , trivalent chromium zinc。chrome plate , zn-ni , etc
10.Salt Spray Test
36 hours , 72 hours, 144 hours , 200 hours , 1 000 hours ,etc
11.Medium
water, oil,gas, etc
12.Application
Use with Braided/Spiral Hoses , Physical Construction , Hydraulic Installation ,Auto Parts
Our main products are Ferrule , Hydraulic fittings , Hydraulic hose fittings , Hydraulic adapter , Hydrualic connections ,
Hydraulic 3-piece suit , Union tee , Union cross , etc
1) Ferrule , matched with many kinds of pipes such as SAE , DIN , EN , GB etc
2) Metric Fitting
Flat Seal Fitting , Mulit-seal Fitting , spherical seal Fitting , 60° Cone seal Fitting , 74° cone seal Fitting , 24°cone O-ring
L.T. Fitting , 24°cone O-ring H.T. Fitting , JIS 60° Cone Seal Fitting, Standpipe Fitting , Japan Metric Fitting etc;
3) British Pipe Fitting
JIS BSP 60° Cone seal Fitting , BSPT Fitting, BSP multiseal Fitting , BSP flat Seal Fitting , BSP O-ring Seal Fitting
4) Americal Pipe Fitting
NPT Fitting , JIC 74°Cone Seal Fitting , NPSM 60°Cone Seal Fitting , ORFS Flat Seal Fitting ,SAE O-ring Seal Fitting
5)One piece fitting
JIC , BSP , Metric , Flange
6) Banjo & Bolt
Metric Banjo , BSP Banjo , Metric Bolt , Bsp Bolt
7) Flange
SAE Code 62 Flange , SAE Code 61 Flange，CAT Flange
8) Double Ended Adapter
9) Metric Transition Adapter
10) British Transition Adapter
11)American Transition Adapter
12)Other Adapter
Note: Special dimension and other standard fitting can be customized, OEM/ODM is welcomed.
Company Profile
Our company is specialized in manufacturing automotive chassis channels and fittings, engine pipeline fittings, all kinds of pneumatics and hydraulic fittings and pipeline fittings. Our company implements an ISO9001 quality management system, and has successfully become the primary or secondary supplier for Faw liberation, DFAC, Foton, Weicai Power, XCMG, etc., and has exported our products to the United States, Russia, Turkey and so on.Our company is located in Diankou Town, Zhuji city, in the east of Shaoxing city, in the north of Hangzhou, only 30 minutes away from Xiaoshan International Airport, so the transportation is very convenient.Our company covers an area of 11,000 square meters, with powerful technology, advanced equipment and complete testing equipment. We are looking forward to cooperating with customers both at home and abroad.
