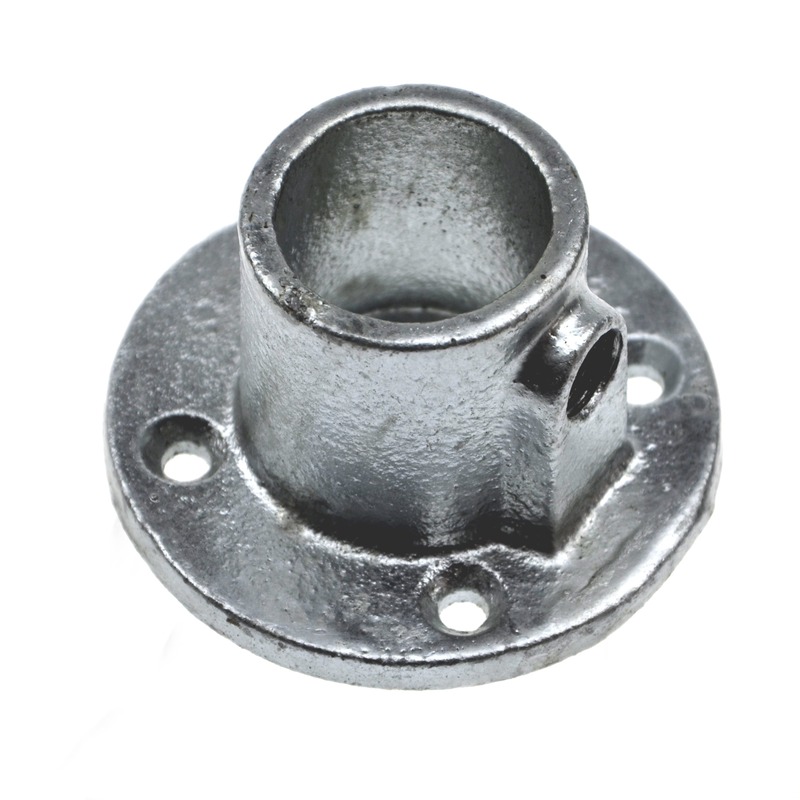

Hand Fencing Base Fitting Pipe Joint Flange Pipe Fence Barrier Tube Flange Fittings

500.0 pieces
MOQ
Hand Fencing Base Fitting Pipe Joint Flange Pipe Fence Barrier Tube Flange Fittings
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 3/4" - 2"
Technics: Casting
Connection: Clamp
Shape: Equal
Head Code: Plain
Application: Hand Railing, Safety Guardrails, Fencing
Suit To Pipe: BS EN 10255 2004
Thread: BS 2779:1986 1/4", 3/8"
Material Specification: BS EN 1562 1997
Material Tensile Strength: 300-350 Mpa
Material Hardness: <=150HB
Material Elongation: 6-10%
Surface Treatment: Hot Dip Galvanization
Thickness Of Galvanization: 70um
Grub Screw: ISO 4029 DIN 916
Basic Infomation
Model Number: 3/4" - 2"
Payment & Shipping Terms
Packaging Details: Packed with cartons, carton demmention 36*27*20cm Pallet material can be wood or steel, demmention 110*110*115cm(60 cartons) or 110*110*95cm(48 cartons) One 20 foot container can load 20 pallets, 10 of each size pallet, totally 1080 cartons.
Supply Ability: 3000 Ton/Tons per Year
Product Description

Product Description

Spefications:

Application: Hand railing, safety guardrails, fencing, playground equipment, shop fitting, milking parlours, racking, sports practice nets, greenhouses, exhibition stands, roof top fall prevention, pedestrian barriers and wheelchair access ramps, etc.
Material Grade: BS EN 1562 1997 black heart malleable iron
Surface Treatment: BS EN 1461 1999 hot dip zinc galvanization
IRAM 1451-3:1995 epoxy coating
Dacromat two layers
Thread: BS 2779:1986 1/4", 3/8"
Grub Screw: DIN 916
Weight Model: Light, Medium, Heavy,
Packing: Cartons and pallets
Chemical Composition:
Specified values % C Si Mn P S Cr Ni Mo Cu N V Co Ti
2.4-2.9 1.4-1.9 0.4-0.65 <0.1 <0.2%
Mechnical Properties:
Specified Values Rm (MPa) Rp0.2 (MPa) A5X10 (%) J (-46C) HB %
Tensile strength Limit of elasticity Elongation Charpy Impaction Brinell Hardness Ferrite Percentage
>=330mpa >=8% <=150HB

Production Process:

Quality Control:

Construction Guide:

Packing & Delivery

1. Small size clamps were packed with one inner carton and one master carton.

2. Large size clamps were put in order in master carton.

3. Carton dimension 36*27*20cm.

4. Stickers with different colors to define different items and sizes.

5. Pallet material can be wood and steel. Dimension 110*110*115cm (60 cartons)

or 110*110*95cm (48 cartons).
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 6-8 weeks, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
