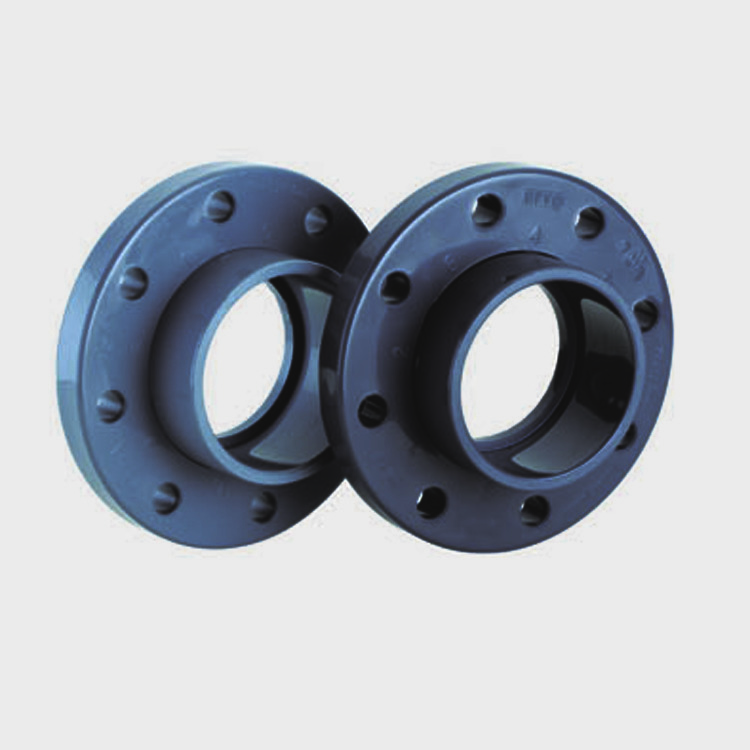

CPVC ANSI Single Flange (150 PSI) CPVC

20 pieces
MOQ
$1.03(>=20 pieces)
Price
CPVC ANSI Single Flange (150 PSI) CPVC
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: ANSI
Processing Service: Moulding
Material: CPVC
Color: Grey
Basic Infomation
Model Number: ANSI
Payment & Shipping Terms
Packaging Details: Carton packaging
Product Description
Product Overview

Single Flange

Also called flange flange disc or flange flange. Flange is a part of the interconnection between shaft and shaft, used for the connection between pipe ends; also used in the flange on the import and export of equipment, used for the connection between two devices, such as reducer flange. Flange connection or flange joint is a detachable connection consisting of flange, gasket and bolt interconnected as a set of combined sealing structure. The pipe flange refers to the flange used for piping in piping installations, and the flange used for equipment refers to the import and export flange of the equipment. There are holes on the flange, and the bolts make the two flanges tightly connected. The flange is sealed with a gasket. Flange is divided into threaded connection (fillet connection) flange, welding flange and clamp flange. Flanges are used in pairs, low-pressure pipelines can use wire connection flange, four kilograms of pressure above the use of welding flange. A gasket is added between the two flanges and then fastened with bolts. The thickness of flanges differs for different pressures, and they use different bolts. Pumps and valves, in connection with the pipeline, the localization of these devices and equipment, also made corresponding flange shape, also known as flange connection.
FEATURES AT A GLANCE
Anti-corrosion, acid and alkali resistance, long service life, etc., reasonable price calculation, smooth surface, acid and alkali resistance and high temperature resistance, beautiful appearance, strong textural performance.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No
Item
Data
1
specifications
1/2''--8''
2
The length of the
90-345mm
3
highly
25--118mm
